If you want skylight shades to fit, measure the opening, not the glass, and write each size as width × length to the nearest 1/8 inch. That one step helps prevent light gaps, poor fit, and hardware problems.
Here’s the short version I’d follow:
- Pick the mount first: inside mount or outside mount
- Use a steel tape measure: not cloth, not a yardstick
- Measure depth at 3 spots: left, center, right
- Measure width at 3 spots: top, middle, bottom
- Measure length at 3 spots: left, center, right
- Use the smallest width and smallest length
- Check both diagonals: if they differ by more than 1/4 inch, the opening is not square
- Note obstructions: handles, cranks, trim, sensors, or uneven surfaces
- Measure each skylight by itself, following the same precision used when you measure windows for blinds: even if two look the same
I’d also be careful with access. A skylight over a stairwell, vaulted ceiling, or slick area is not worth the risk. In coastal spots like Myrtle Beach and Little River, humidity and damp trim can also throw off readings.
Bottom line: I’d choose the mount, measure in inches, record to 1/8 inch, use the tightest inside measurements, and switch to outside-mount sizing if the opening is shallow, uneven, or out of square.
How to Measure for Skylight Window Shades
Before you begin, ensure you have the right tools for measuring and installing window treatments to ensure a precise fit.
sbb-itb-bbd3158
Tools You Need and How to Access the Skylight Safely
Once you’ve picked the mount, it’s time to get your tools together and make sure you can reach the skylight safely.
You don’t need much:
- A steel tape measure
- A stable ladder rated for your weight
- A pencil and paper or a notes app
- A small level
Use a steel tape measure, not a cloth tape or yardstick. Cloth tapes can stretch, and yardsticks can bend. That’s an easy way to end up with bad numbers. A small level also matters more than people think. It helps you check whether the skylight frame and trim are level before you write anything down.
These basic tools make it much easier to measure depth, width, and length without guessing.
Pick a ladder that lets you reach the skylight without standing on the top step or top rung. Set the ladder on a flat, dry surface. Make sure all four feet are planted and the spreaders are locked open. Before you climb, move rugs, furniture, pets, children, and hanging fixtures out of the way.
Safety Checks for Coastal Carolina Homes
In Myrtle Beach and Little River homes, take a close look around the skylight before you get on the ladder. Check for condensation, dampness, or warped trim. Moisture can make floors slick, and warped trim can throw off your depth readings.
From floor level, gently press the nearby drywall. If it feels soft or spongy, stop there and have the area checked before measuring.
It’s also smart to avoid measuring during or right after heavy rain, coastal storms, or stretches of high humidity, when surfaces may still be slick. Have a second adult in the room to steady the ladder and hand you tools.
How to Measure Skylight Depth, Frame, Width, and Length

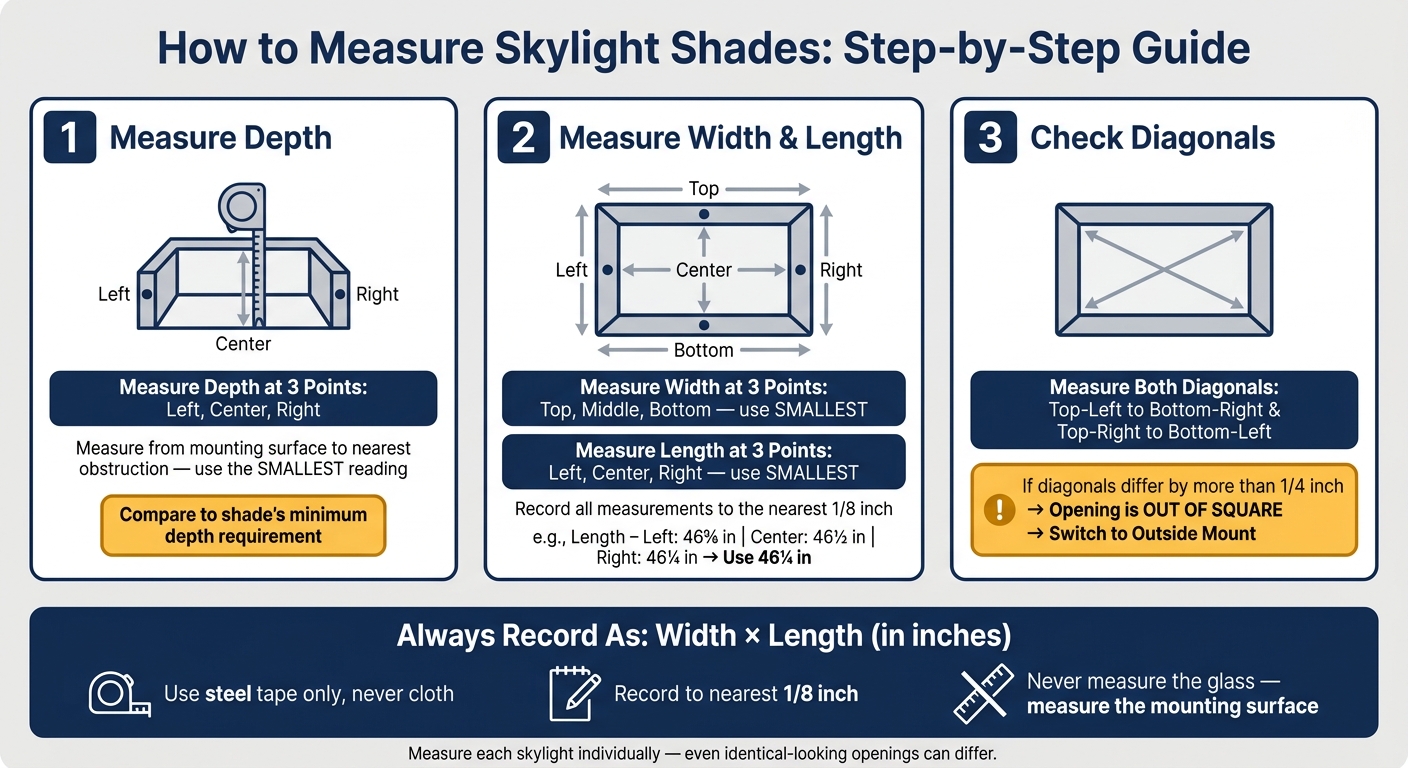

How to Measure Skylight Shades: Step-by-Step Guide
Start at the mounting surface, not the glass. That’s where the shade hardware attaches.
If you measure the glass instead, your size can end up off by 1–2 inches. And that can lead to gaps or hardware that sits crooked. These measurements help you confirm if an inside mount will fit the opening the way it should.
Step 1: Measure Depth and Note Frame Details
Follow accurate measurement tips by setting your steel tape measure against the mounting surface and measure straight back to the nearest obstruction. That could be the glass, a metal lip, or the inside edge of the frame.
Take this measurement at the left, center, and right of the opening. Then circle the smallest number. That’s your usable depth for an inside mount. Before you order, compare that number with the shade’s minimum depth requirement.
While you’re there, take a close look at the frame itself. Check whether the well is:
- Flat: vertical sides
- Flared: sides angle outward toward the room
Also note the interior finish. Is it wood trim or a drywall return? Look for anything that might get in the way, like cranks, vent handles, moisture sensors, or other protrusions that could block the headrail or side channels.
A quick sketch helps here. Draw the frame and mark any obstructions so nothing gets missed.
If the depth checks out, move on to width and length.
Step 2: Measure Width and Length at Three Points
For width, measure the opening at the top, middle, and bottom. Keep the tape level each time. Record each number in inches to the nearest 1/8 inch.
Circle the narrowest width. That’s the one to use so the shade doesn’t bind. In coastal areas, moisture can make trim swell a bit, so the tightest width is the safer call.
For length, measure from the top mounting surface straight down to the bottom inside edge on the left, center, and right sides. Label each reading clearly.
Length – Left: 46⅜ in; Center: 46½ in; Right: 46¼ in
Record the shortest length. Send the measured numbers as-is. The manufacturer will apply the allowances.
Step 3: Check Diagonals to Confirm the Opening Is Square
Measure from the top-left corner of the bracket surface to the bottom-right corner. Then measure from the top-right corner to the bottom-left.
If those two diagonal measurements differ by more than 1/4 inch, treat the opening as out of square. When that happens, side tracks may not line up well, and gaps can show along one edge.
If the opening is out of square, switch to outside-mount measurements in the next section.
When to Use Outside-Mount Measurements
If the diagonal check shows the opening is out of square, switch from inside-mount to outside-mount measurements. That also makes sense when the opening is too shallow for hardware, flared or tapered, or damaged enough that an inside mount won’t sit in place well. And for bright south- and west-facing skylights, an outside mount can help cut glare and reduce light leaks.
How to Measure for Full Coverage
Measure the full opening width and length you want to cover, then add the overlap needed on all sides. Add a bit more if you’re dealing with thick trim or a textured ceiling, and make sure there’s enough flat surface for bracket placement. [1]
Write down the finished size as width × length and mark it as outside mount. Measure each skylight on its own, even if two openings look almost the same. Buying from a local window treatment company can help ensure these measurements are precise. Small differences are common.
When to Have a Professional Take the Measurements
Some skylights are just tough to measure safely. Bring in a professional if the skylight is too high, awkward, or risky to reach, like one over a stairwell or in a vaulted room. A specialist can take outside-mount measurements on site. AAA Blind & Shutter Factory offers free in-home consultations for these situations.
Common Measuring Mistakes and a Final Checklist
Measuring Mistakes Homeowners in Myrtle Beach and Little River Often Make
Once you’ve written down depth, width, length, and diagonals, take a minute to review your notes. That extra check can save you from ordering the wrong shade.
One mistake shows up all the time: using a cloth tape. Skip that. Use a rigid metal tape measure with clear 1/8-inch markings.
Another big one is rounding. Don’t do it. If the true width is 23⅞ inches and you round it up to 24 inches, the shade may bind or not fit at all. Write every measurement to the nearest 1/8 inch, and use the smallest final numbers for both width and length. In Coastal Carolina homes, this matters even more. Humidity, salt air, and normal settling can make frames swell or shift, so the opening may not stay even from top to bottom or side to side.
Homeowners also often mix up width and length when they write measurements down, or they measure to the glass instead of the mounting surface. Both can cause problems. If width and length are swapped, the shade can be made in the wrong orientation. And if you measure the glass instead of the mounting surface, the finished fit may be off. Always measure to the mounting surface, and always write the final size as width × length in inches.
It’s also easy to skip the diagonal check, but that can come back to bite you, especially in older coastal homes that have dealt with humidity, salt air, or storm damage. If the diagonals differ by more than 1/4 inch, an inside-mount shade may bind or leave uneven light gaps. If the opening is out of square, or it’s hard to reach without risking a fall, bring in a pro.
What to Confirm Before You Place Your Order
Use this checklist before placing your order.
| What to Check | What to Record |
|---|---|
| Mount type | Inside or outside mount |
| Frame depth | Inches at the planned mounting surface |
| Width (3 points) | Top, middle, bottom – use the smallest |
| Length (3 points) | Left, center, right – use the smallest |
| Diagonals | Both corner-to-corner measurements |
| Obstructions | Trim, handles, beams near the opening |
| Order format | Width × length in inches |
Double-check that width and length haven’t been swapped, and write down the date you took the measurements. If there’s been recent storm damage or repair work, measure again before ordering. Careful, steady measuring is what helps custom skylight shades fit with precision and perform well in a coastal climate.
FAQs
How do I know if I need an inside or outside mount?
It mostly comes down to three things: your window frame depth, how square the opening is, and the look you want.
An inside mount gives you that built-in look. But it only works if your frame has enough depth – usually 3/4 inch to 2 inches – and the window opening is fairly square.
An outside mount is often the better pick for shallow or uneven windows. It can also help cut down on light gaps.
What if my skylight opening isn’t perfectly square?
First, measure the diagonals from corner to corner. If the two measurements differ by more than 1/2 inch, the opening is usually too out of square for a successful inside mount.
When that happens, an outside mount is the better choice. It covers the full opening and helps hide uneven edges or other irregularities.
If the variation is minor, measure the width and height at three points each. Then use the smallest measurements for the inside mount.
Should I remeasure after humidity, repairs, or storm damage?
Yes. If humidity, storm damage, or repairs affect the window frame or the area around it, measure again before you order shades.
This matters even more in coastal areas. Wood frames can warp, swell, or shrink, and repair work or storm damage can throw off alignment or add new obstructions. Even small shifts in squareness or mounting depth can lead to fit issues or light gaps.
